Masterpac Products

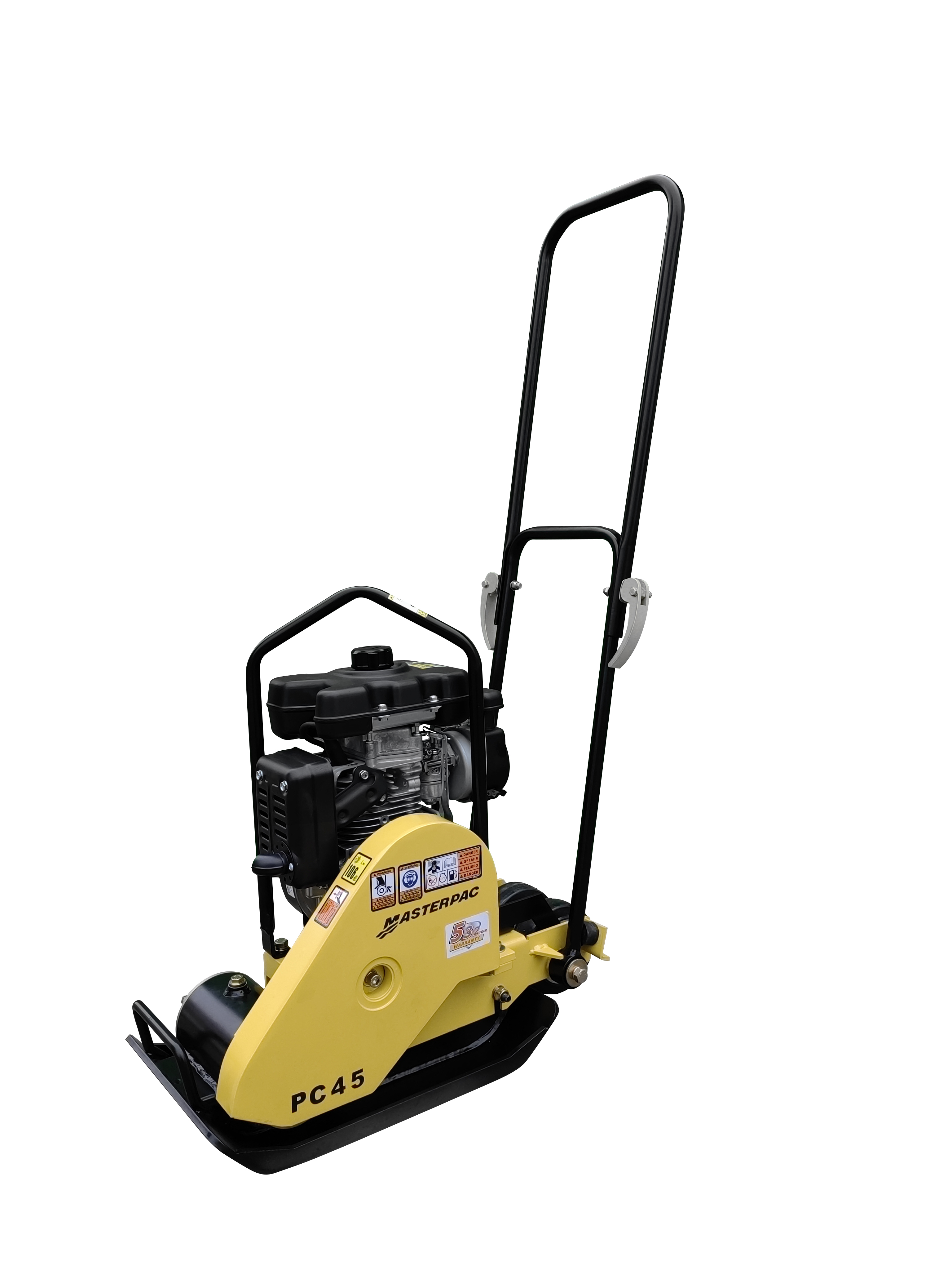

PC45R

Lightweight design for better manoeuvrability and professional performance.

  • Engine Type: Robin EH09
  • Power kw(hp): 1.5(2.0)
  • Weight kg(lb): 45
  • Centrifugal Force kN: 7.5
  • Vibration Frequency vpm(Hz): 100
  • Plate Size L X W mm(in): 470x290(18.5x11.4)
  • Travel Speed m/min(ft/min): 25(82)

Plate Compactor  平板夯

Lightweight design for better manoeuvrability and professional performance
轻量化设计，提升操控性和专业性能

  • Built-in wheels make machine runs easier.
    内置轮子使机器运行更轻松。
  • Foldable handle for more convenient and transportation.
    可折叠手柄，方便携带。
  • Narrow base plate is suitable for more demanding construction.
    窄底板适用于要求更高的施工环境。
  • Lightweight overall design greatly reduce labor intensity.
    轻量化的整体设计大大降低了劳动强度。
Model
 PC45R
Engine Type  发动机类型
 Robin EH09  罗宾 EH09
Power kw(hp) 2.1(2.9)
Weight kg(lb)  重量（千克）
 45
Plate Size L X W mm(in)
板材尺寸（长×宽）毫米（英寸）
 470x290(18.5x11.4)  470x290（18.5x11.4）
Centrifugal Force kN  离心力（千牛）
 7.5
Vibration Frequency vpm(Hz)
振动频率 vpm(Hz)
 6000(100)
Travel Speed m/min(ft/min)
行驶速度 米/分钟（英尺/分钟）
 25(82)

* We reserve the right to improve or withdraw the specification or product without prior notice.
