PFG10

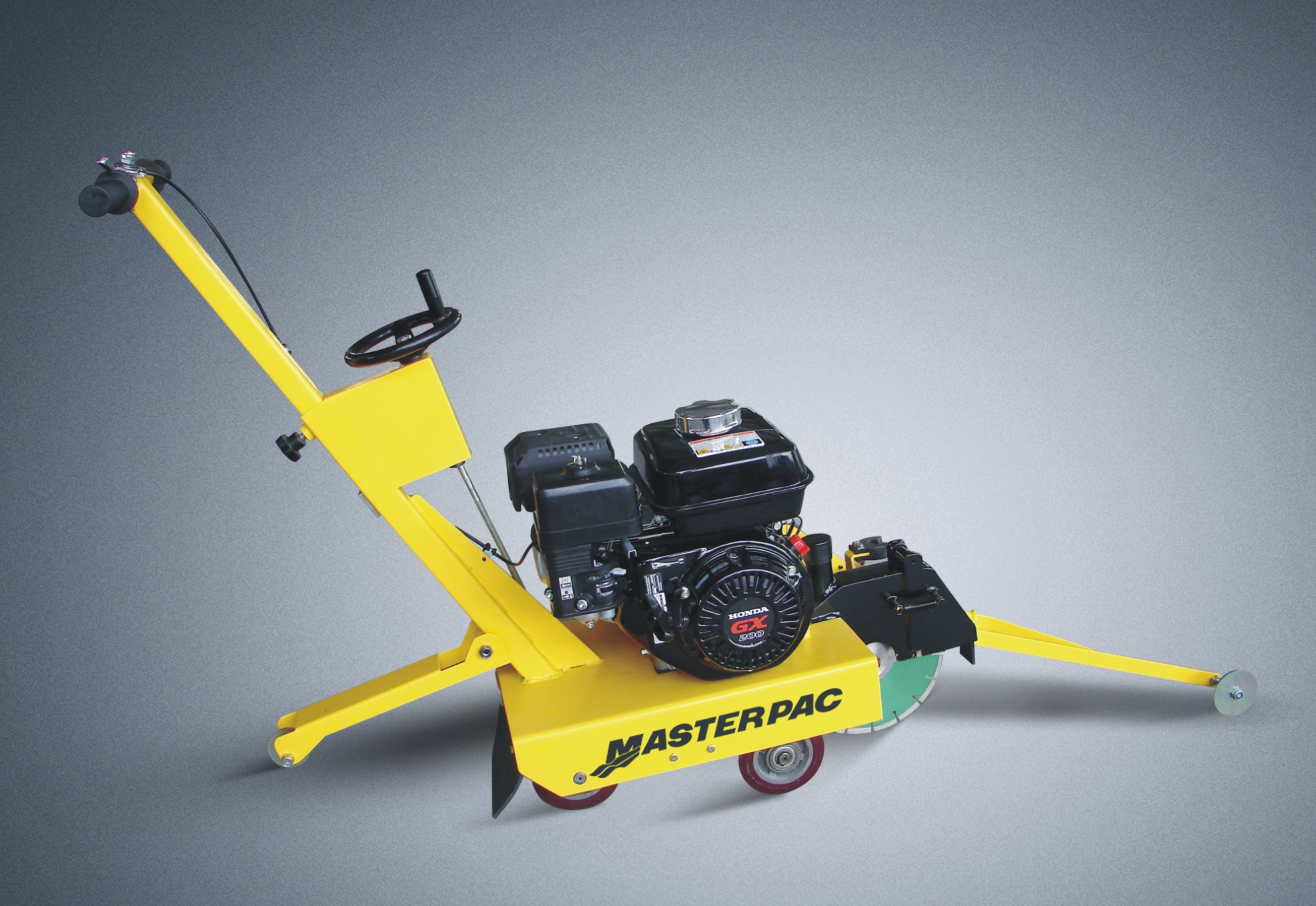

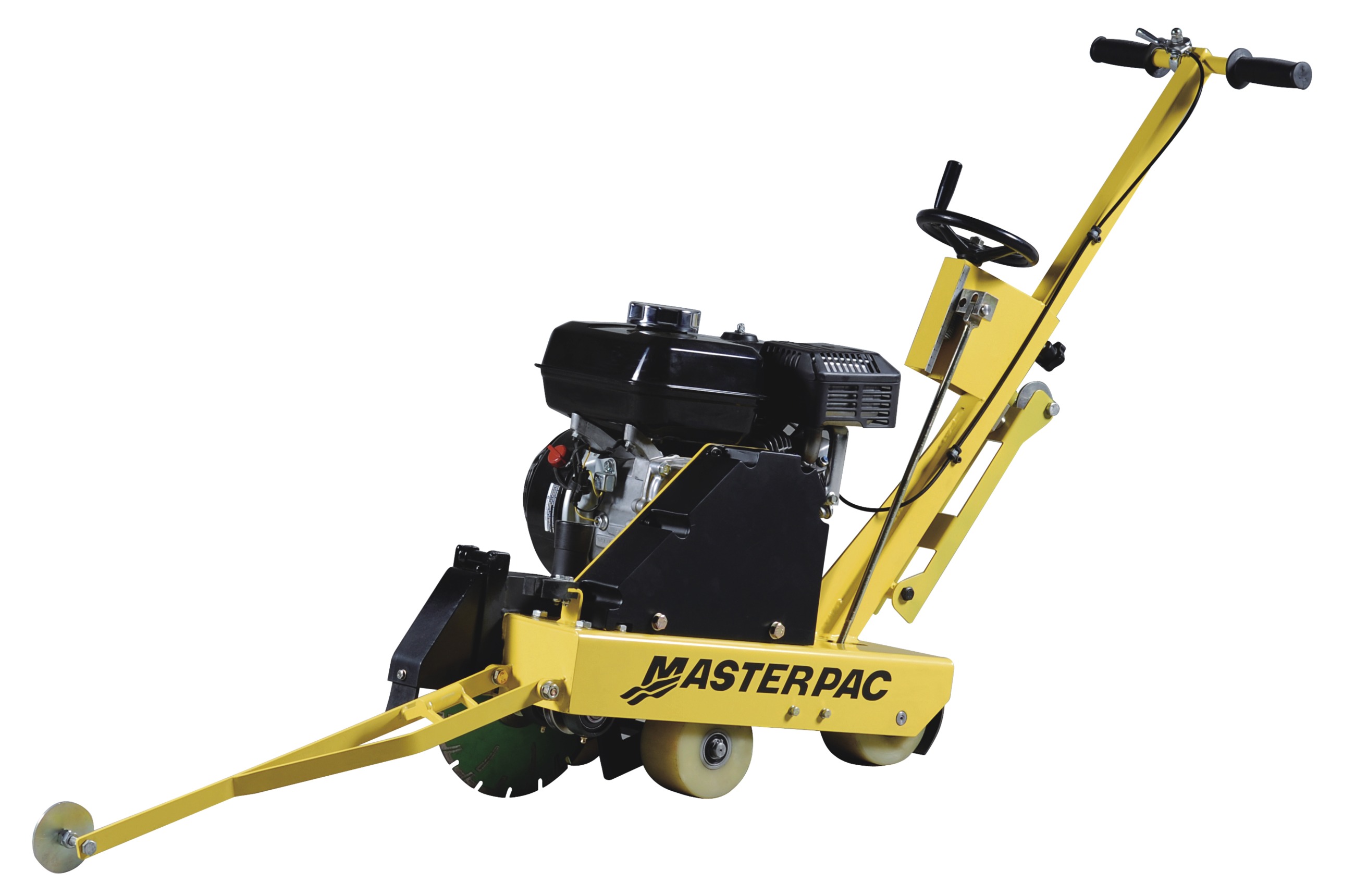

Masterpac PFG10 Early Entry Green Concrete Saw with 5.6 HP Honda GX200, This Green Concrete With Saw 10in blade capacity for a 3.25in depth of cut, perfect for concrete slab joints to prevent stress cracks and random cracking.

    No record

GREEN CONCRETE SAW - PFG10 SERIES

The compact designed, lightweight, multipurpose saw allowing for control joints cutting in green concrete decorative cutting and light slab demolition.

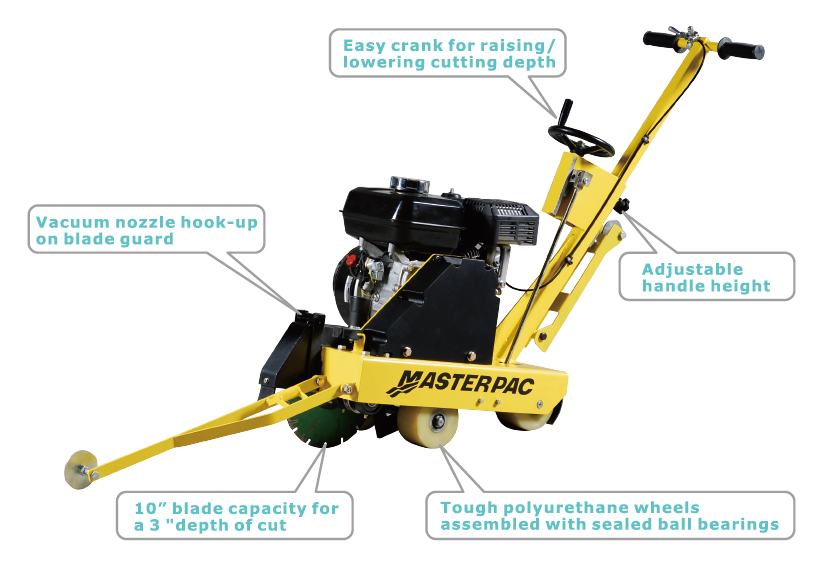

Features

  • Prevent random cracking and premature joint failure.
  • Lightweight yet heavy-duty construction.
  • 10" blade capacity for a 3 depth of cut.
  • VACUUM NOZZLE hook-up on blade guard.
  • Suitable for control joint cutting in green concrete and decorative cutting in cured concrete, light slab demolition in cured concrete and asphalt.
  • Saws right to the edge of walls and columns.
  • Center blade mount design for straight line cutting.
  • REAR POINTER drops into cut to ensure straight cutting.
  • Adjustable handle height for operator comfort.
  • Tough polyurethane wheels assembled with sealed ball bearings for absorbing vibration and riding smoothly on all surfaces.

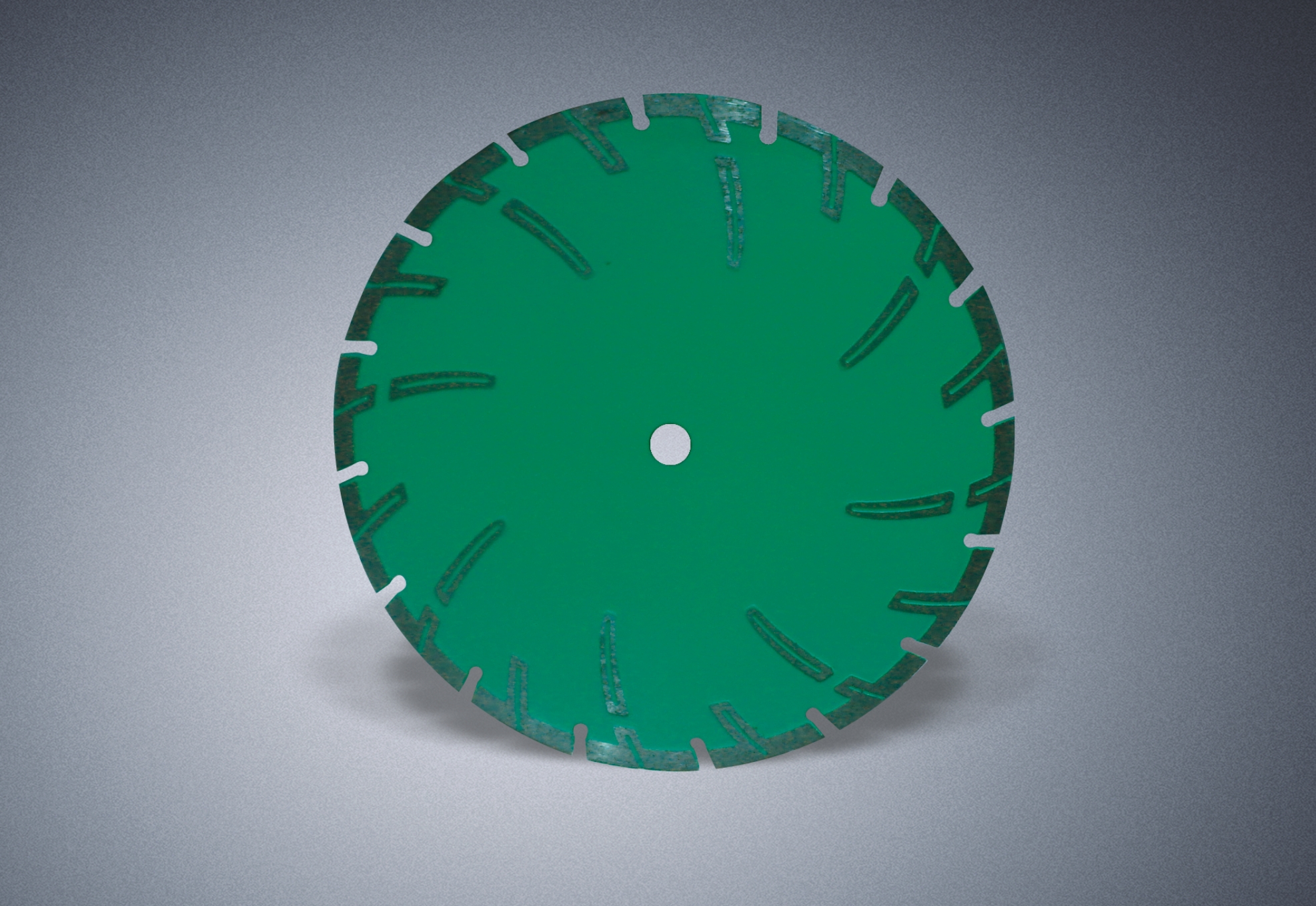

  • Standard 5/8" blade arbor.

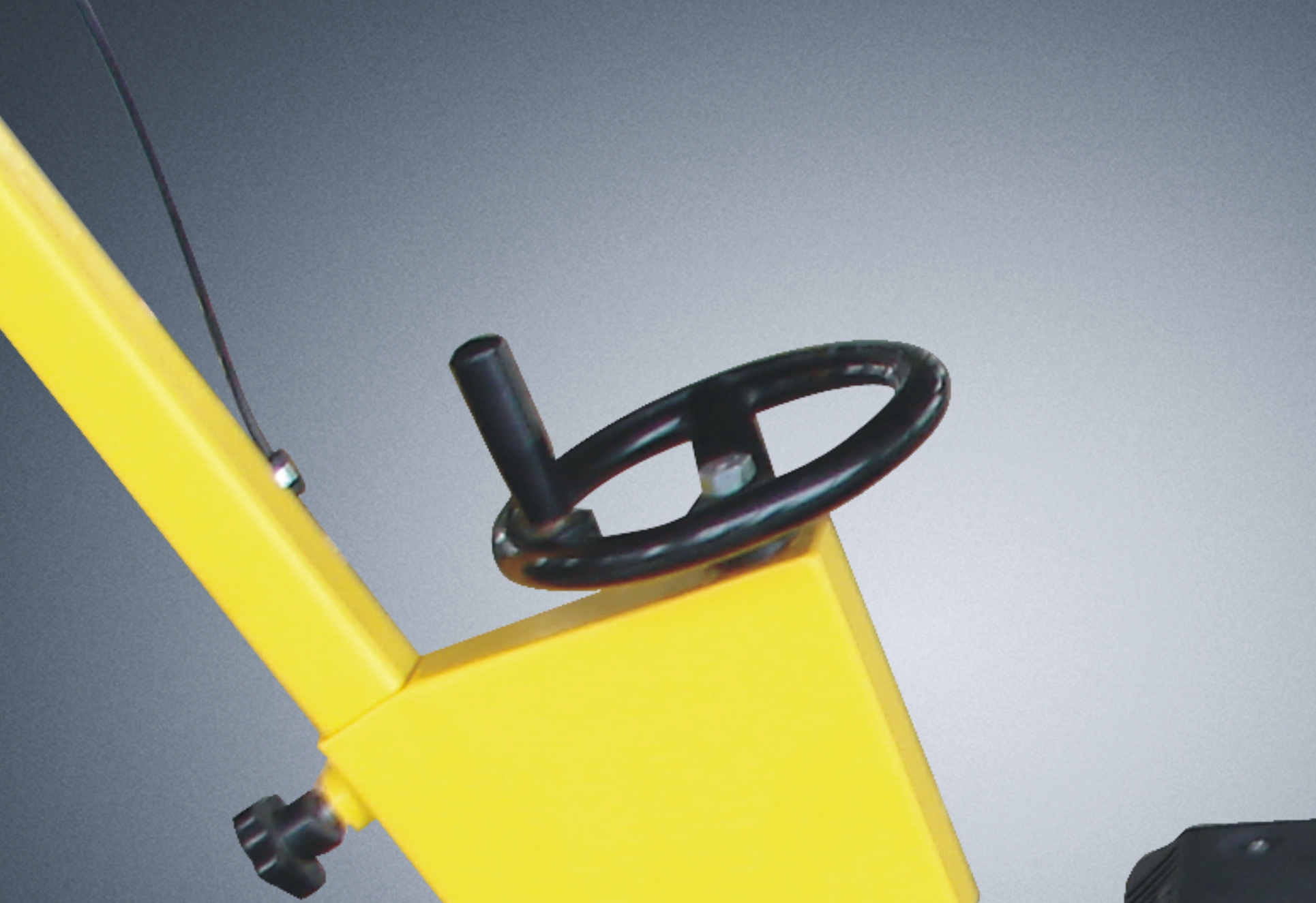

  • EASY CRANK for raising/lowering cutting depth.

Working Size(mm)

MASTERPAC

Model PFG10H PFG10R
Engine Type Honda GX200 Robin EX17
Power kw(hp) 4.1(5.6) 2.9(4.0)
Cutting Depth mm(in) 82.6(3.25) 82.6(3.25)
Blade size in 10” 10”
Operation weight kg(lb) 50(110) 49(108)
Depth adjustment Handle Rotation



* We reserve the right to improve or withdraw the specification or product without prior notice.
