Masterpac Products

PC88

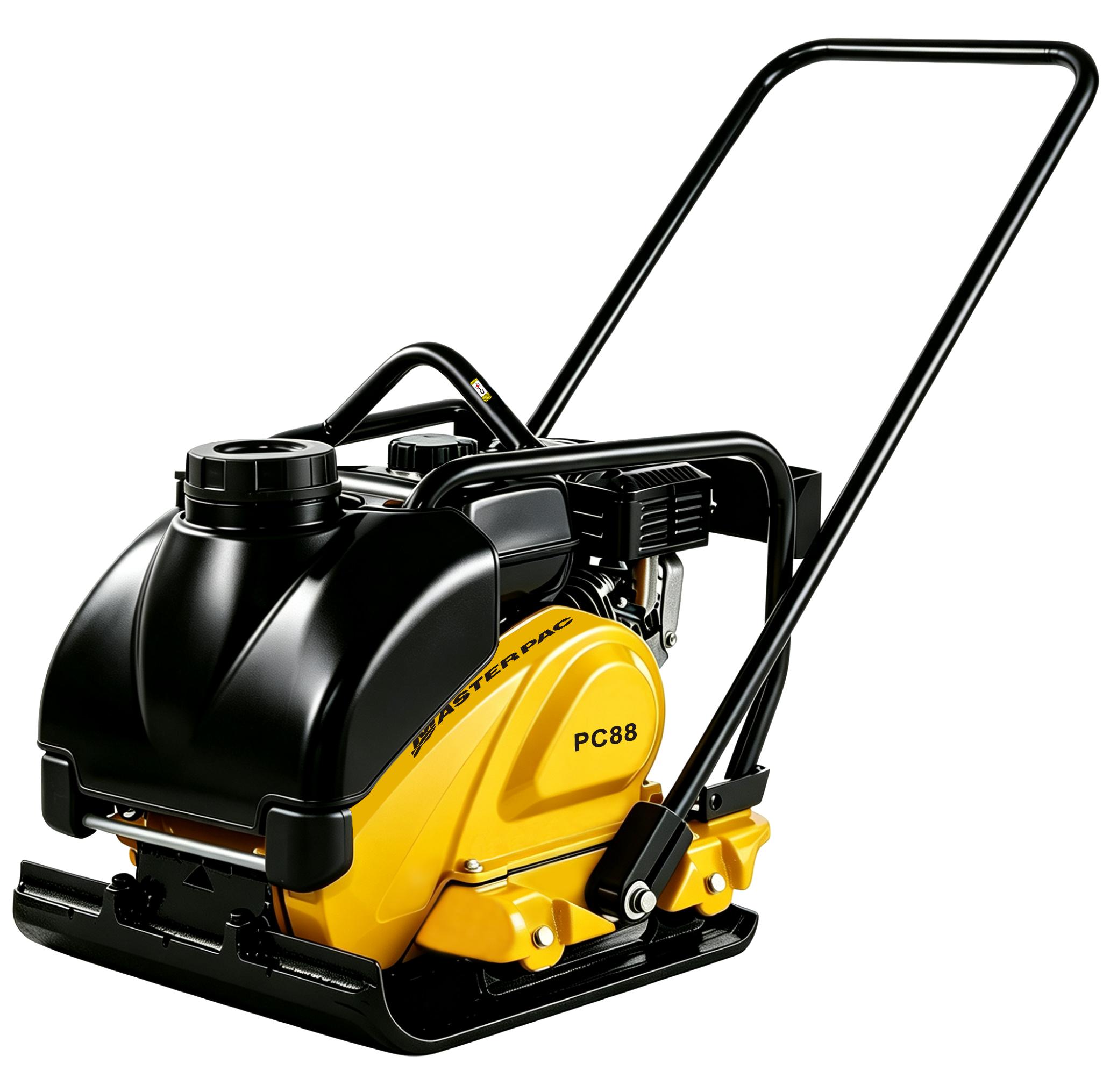

MASTERPAC PC88 Forward Plate Compactor is designed for efficient and reliable compaction of asphalt and soil. Powered by a Honda GX160 engine, it delivers 15 kN centrifugal force and 6,000 vpm for excellent compaction performance. Featuring an integrated water tank, lifting hook, sealed clutch and belt guard, and ergonomic vibration-damping handle, the PC88 offers easy operation, safe handling and dependable performance for roadwork, paving, landscaping and construction applications.

  • Model: PC88
  • Engine Type: Honda GX160
  • Power kw (hp): 3.6(4.9)
  • Weight kg (lb): 92(203)
  • Centrifugal Force (kN): 15
  • Vibration Frequency vpm (Hz): 6000(100)
  • Travel Speed m/min (ft/min): 25(82)
  • Plate Size ( LxW) mm(in): 526 x500 ( 21 x 20 )

Features:

· Heavy-duty base plate and high-quality vibration system ensure superior compaction performance for both sub-base and asphalt applications.

· High centrifugal force (15 kN) with 6,000 vpm vibration frequency provides deep compaction with fewer passes, increasing job site productivity.

· Integrated water tank system prevents asphalt from sticking to the plate, ensuring a smooth and clean finish.

· Lifting hook and optional wheel kit enable easy and safe on-site handling and transport.

· Ergonomically designed handle with vibration-damping rubber mounts reduces operator fatigue during extended use.

· Easy-access controls and maintenance points simplify daily checks and service.

Model Units PC88
Operating Weight, CECE kg(lb) 92(203)
Engine Type - Honda GX160
Power kw(hp) 3.6(4.9)
Plate Size ( L X W ) mm(in) 526 x 500 ( 21 x 20 )
Centrifugal Force kN 15
Vibration Frequency vpm (Hz) 6000 (100)
Travel Speed m/min (ft/min) 25(82)

* We reserve the right to improve or withdraw the specification or product without prior notice.
